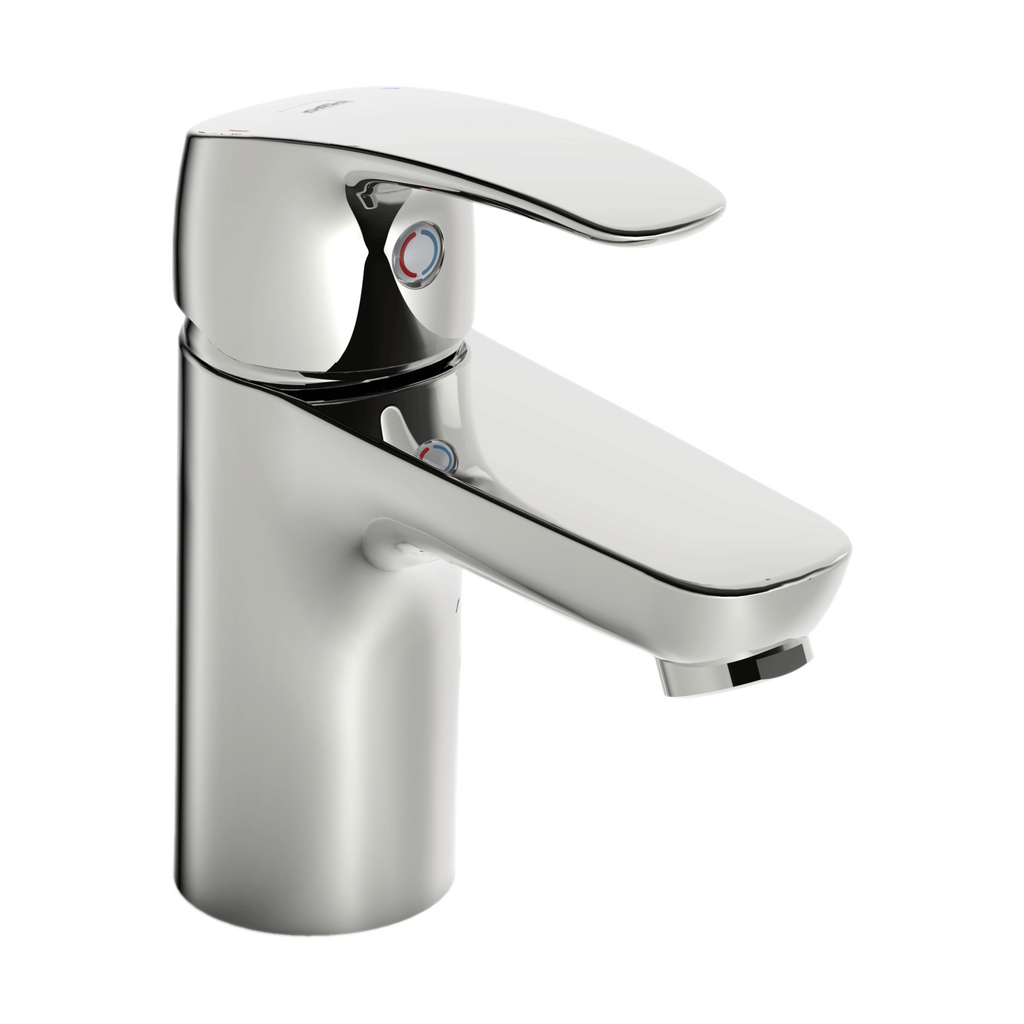

Oras Safira - Washbasin faucet (1010f-105)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Extensions
Chain holder without chain
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

Flow attributes

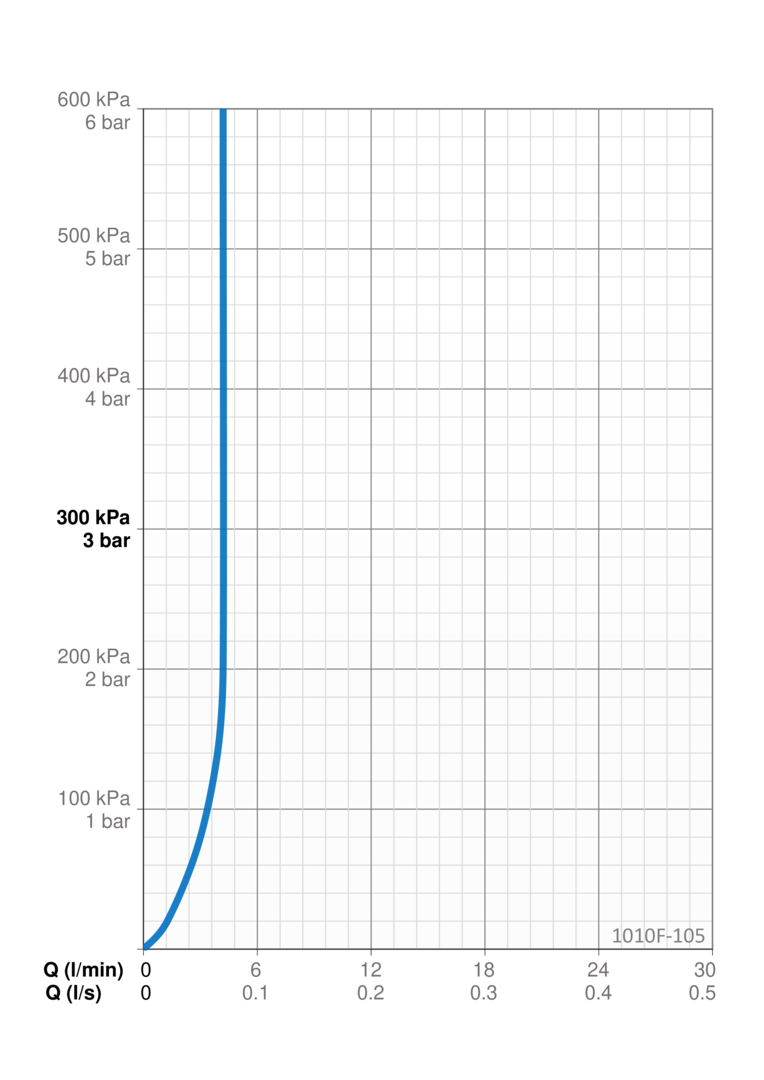

• Flow-rate at 300 kPa (with flow controller)
0.07 l/s

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

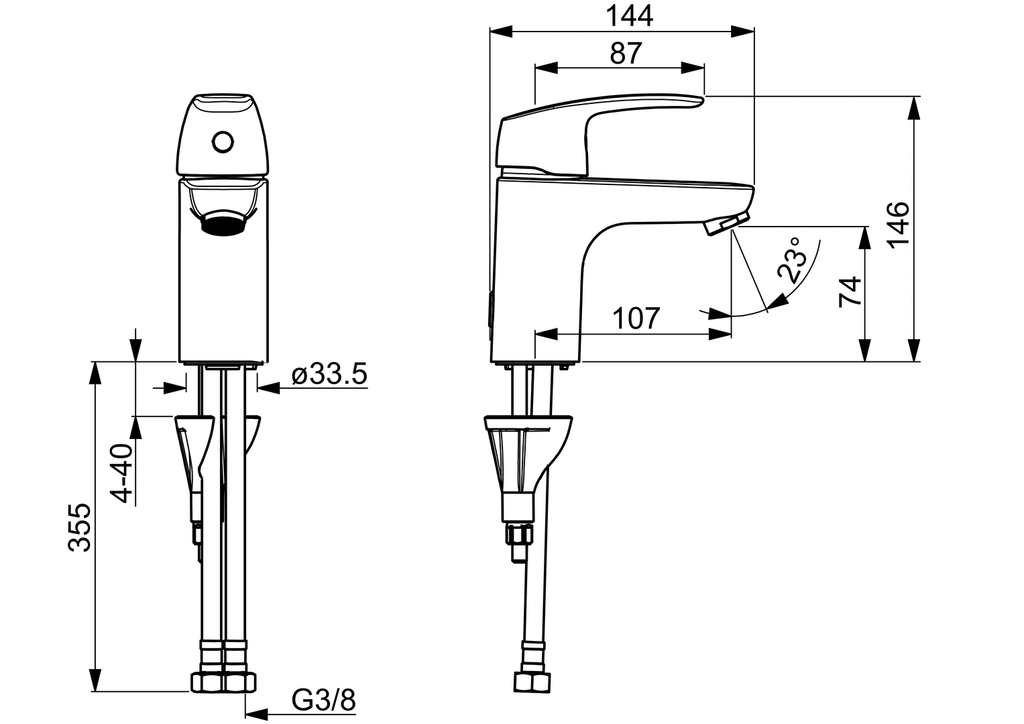

• Projection
107 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822) Oras lab.

Approvals and Declarations

• Sintef
Sintef Nr. 3637
• STF
EUFI29-22005194-TH
• KIWA SE
1490

Sustainability

• EPD module A1 (kg CO2 eq.)
5,99
• EPD module A1-A3 (kg CO2 eq.)
6,84
• EPD module A2 (kg CO2 eq.)
0,29
• EPD module A3 (kg CO2 eq.)
0,57
• EPD module A4 (kg CO2 eq.)
0,19
• EPD module B7 (kg CO2 eq.)
1297,80
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,01
• EPD module C4 (kg CO2 eq.)
0,05
• EPD module D (kg CO2 eq.)
-4,87
