Oras Safira - Washbasin faucet with washing machine valve (1034F)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Spout
Swivel spout, Swivel range limiting option, Profile construction
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (60° / 0°)

Flow attributes

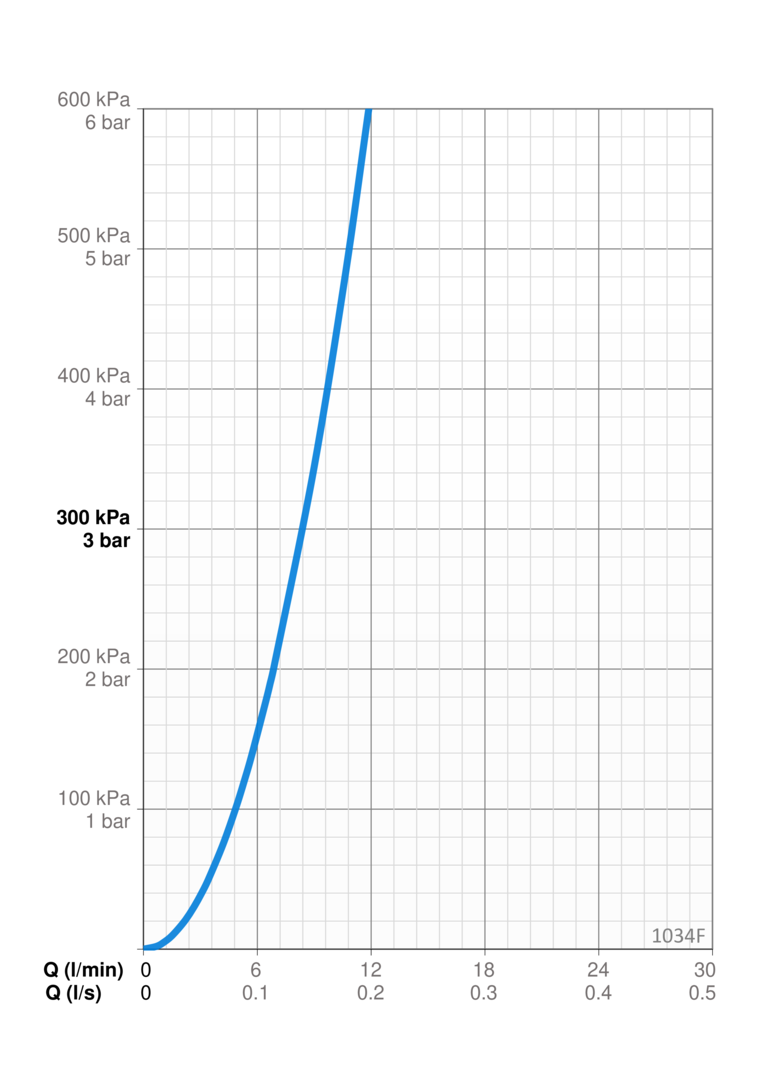

• Flow-rate at 300 kPa
0.14 l/s
• Pressure loss with flow (0.1 l/s)
160 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

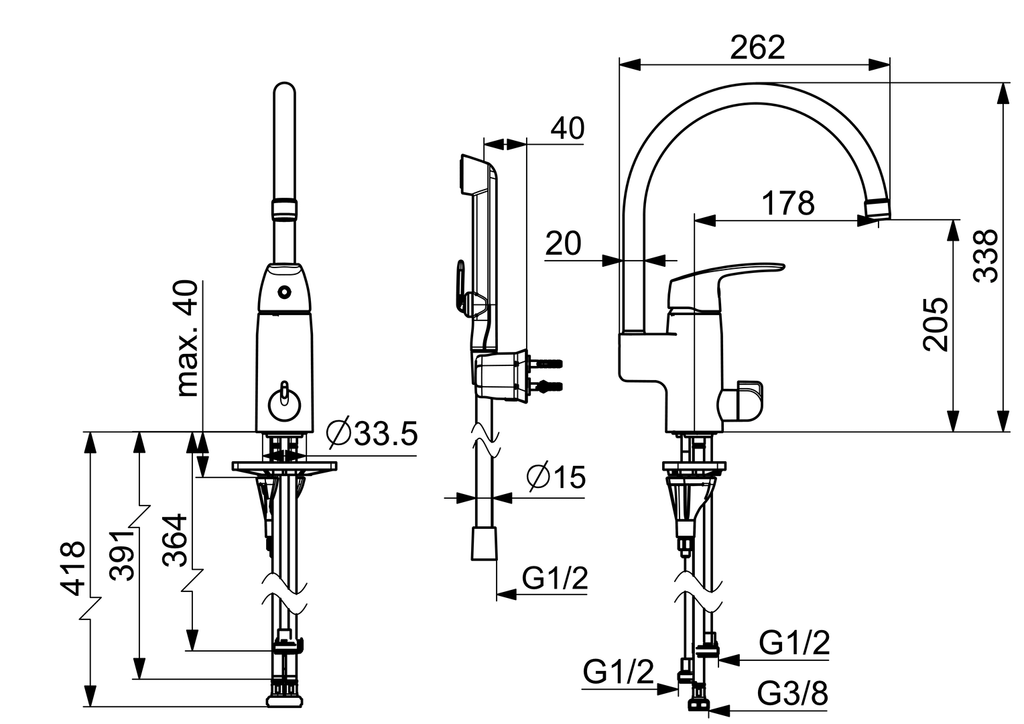

• Projection
178 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-22005194-TH

Sustainability

• EPD module A1 (kg CO2 eq.)
11,95
• EPD module A1-A3 (kg CO2 eq.)
13,65
• EPD module A2 (kg CO2 eq.)
0,57
• EPD module A3 (kg CO2 eq.)
1,13
• EPD module A4 (kg CO2 eq.)
0,38
• EPD module B7 (kg CO2 eq.)
2595,60
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,03
• EPD module C4 (kg CO2 eq.)
0,11
• EPD module D (kg CO2 eq.)
-9,71
