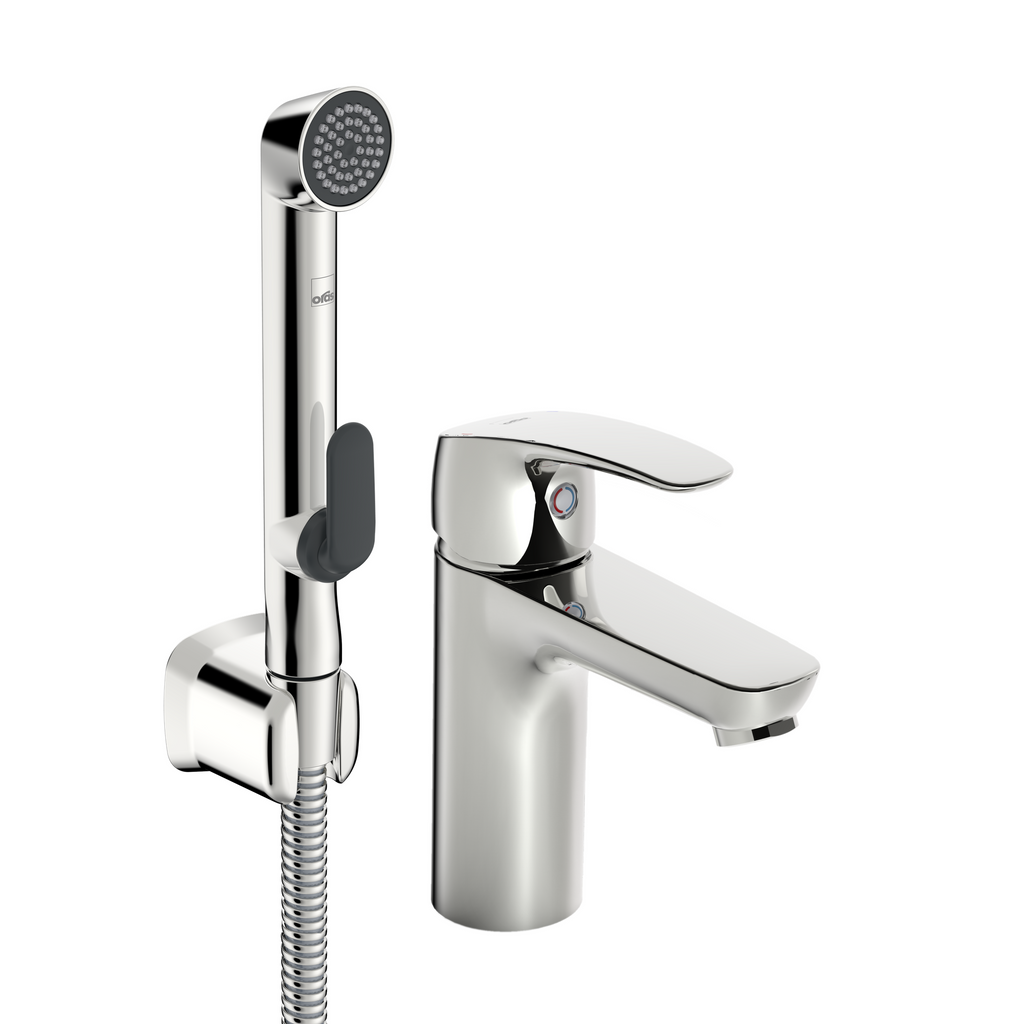

Oras Safira XL - Washbasin faucet (1001f)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Extensions
Chain holder without chain
• Hand shower
Bidetta hand shower
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm)
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

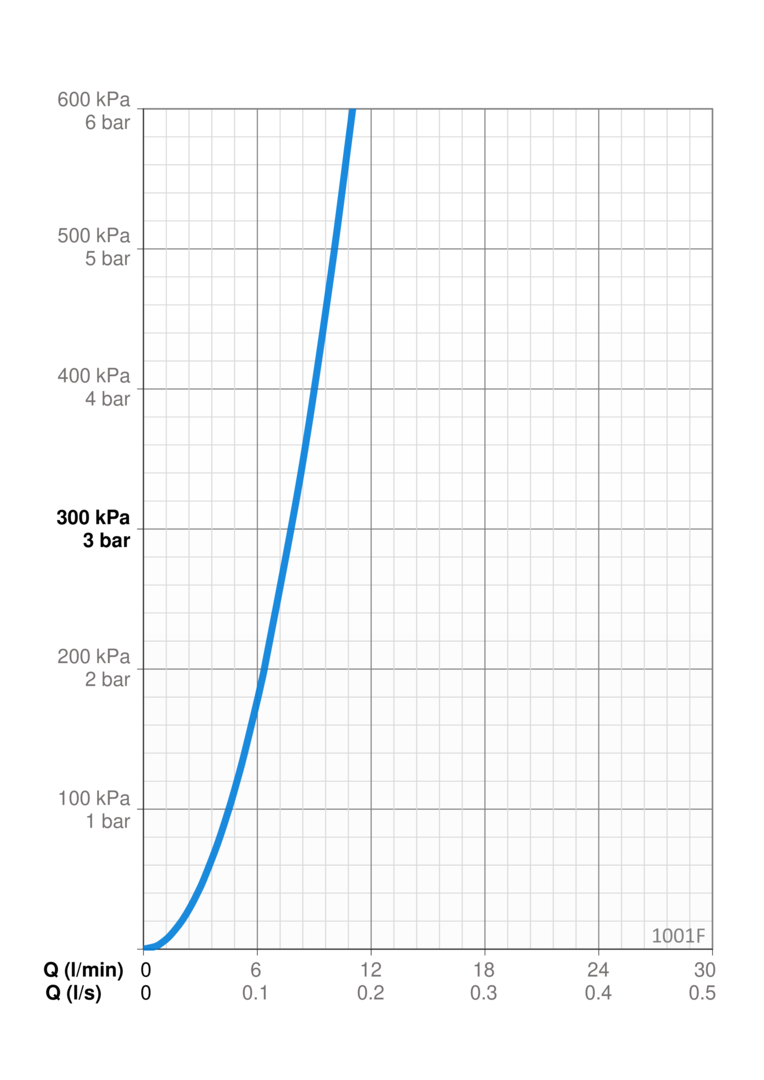

Flow attributes

• Flow-rate at 300 kPa
0.13 l/s
• Pressure loss with flow (0.1 l/s)
160 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
115 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817, EN 1113
• Noise class
I (ISO 3822) Oras lab.

Approvals and Declarations

• STF
EUFI29-22005194-TH
• KIWA SE
1490

Sustainability

• EPD module A1 (kg CO2 eq.)
8,71
• EPD module A1-A3 (kg CO2 eq.)
9,96
• EPD module A2 (kg CO2 eq.)
0,42
• EPD module A3 (kg CO2 eq.)
0,82
• EPD module A4 (kg CO2 eq.)
0,28
• EPD module B7 (kg CO2 eq.)
2410,20
• EPD module C2 (kg CO2 eq.)
0,02
• EPD module C3 (kg CO2 eq.)
0,02
• EPD module C4 (kg CO2 eq.)
0,08
• EPD module D (kg CO2 eq.)
-7,08
