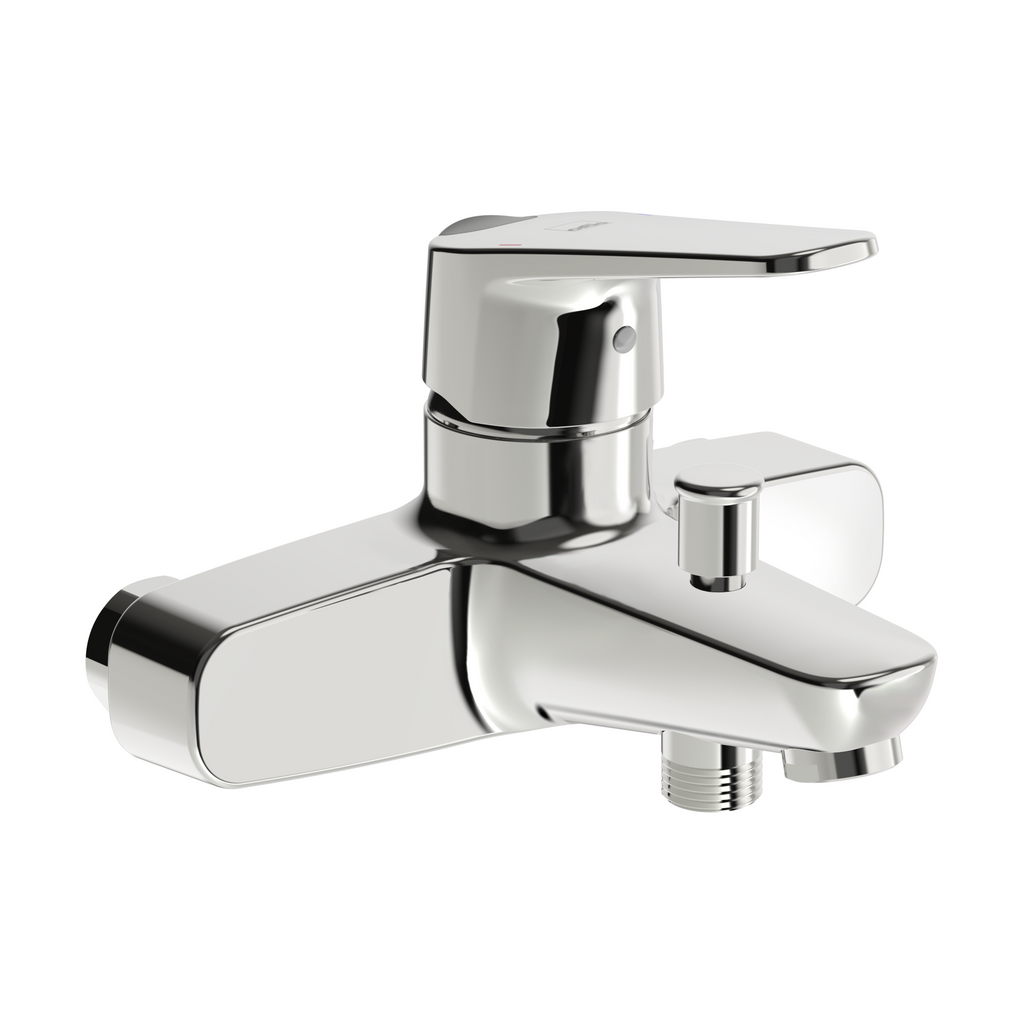

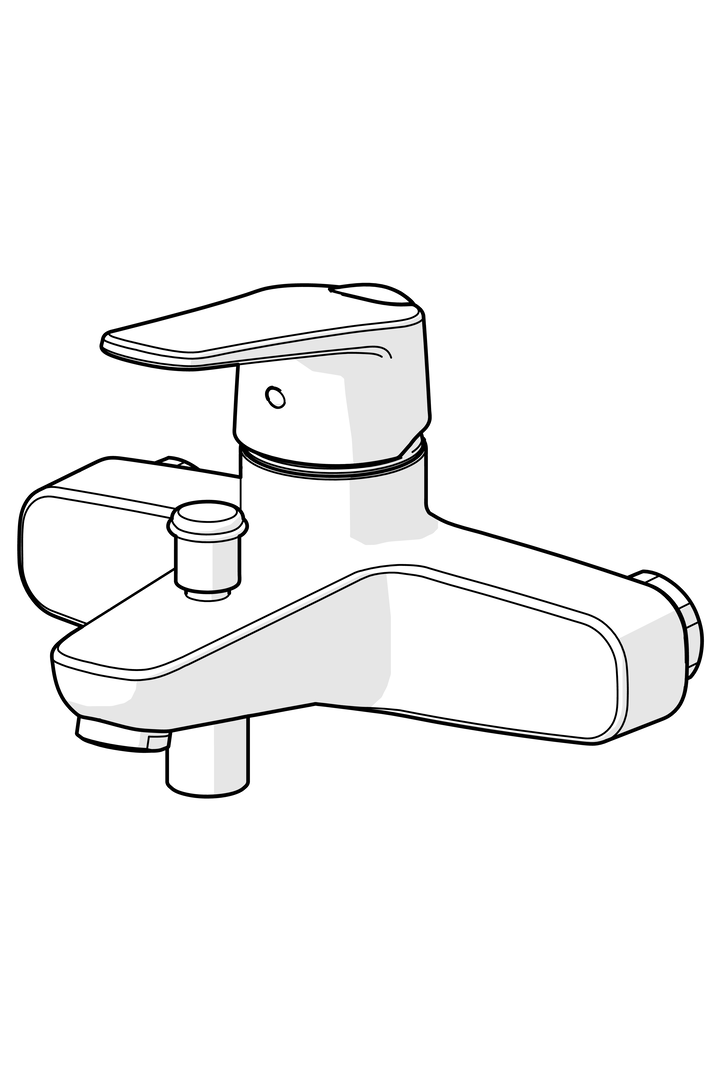

Oras Vega - Bath and shower faucet (1840G)

Features

• Aerator
Standard aerator
• Diverter
Pull operated diverter
• Lever/Handle
Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

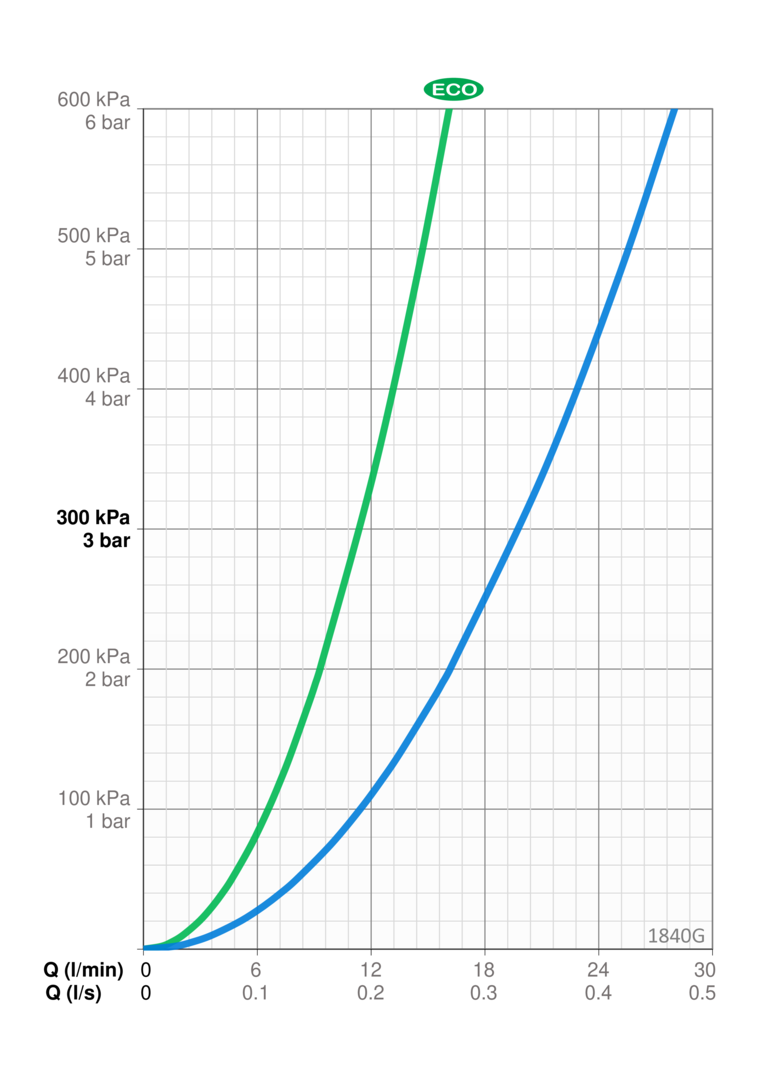

Flow attributes

• Eco-flow at 300 kPa
0.19 l/s
• Flow-rate at 300 kPa
0.33 l/s
• Pressure loss with flow (0.2 l/s)
160 kPa
• Pressure loss with flow (0.3 l/s)
295 kPa

Technical properties

• Backflow prevention (EN1717)
HC

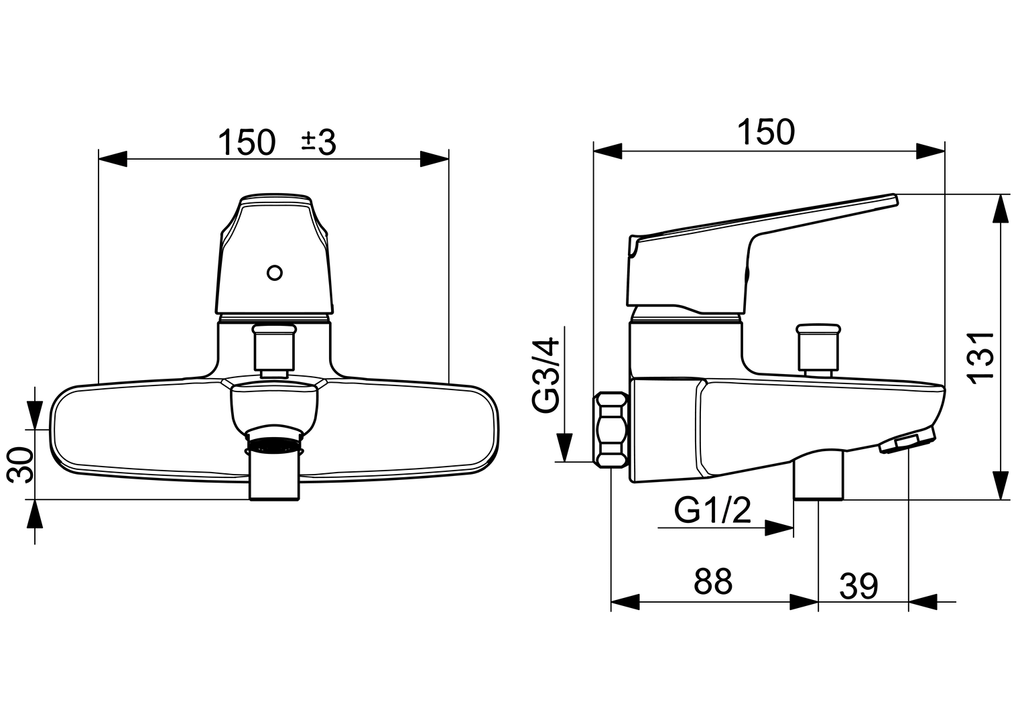

• Connection size
G3/4
• Hot water supply
max. +80°C
• Installation width
150 ± 3 mm
• Material
Brass
• Projection
127 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20000935-TH2
