Oras Vega Comfort - Kitchen faucet

Oras Vega Comfort - Kitchen faucet

€413,95
Sale price  €413,95 Regular price

Kitchen faucet with pull-out spout. Swivel spout with pull-out spout/spray and aerator. Spout’s pull-out length can be fixed. Spout’s swing angle is factory preset at 120 ° (can be limited to 40 °-80 °). Lever is equipped with an eco-button for limiting flow-rate, which can be bypassed by pressing the button. With flexible pipes.

Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Lever/Handle
Single operating lever/handle, Eco feature for water flow, Hot/Cold symbols
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
2 spray functions
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Swivel spout, Pull-out model, Swivel range limiting option
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (40° - 80°)

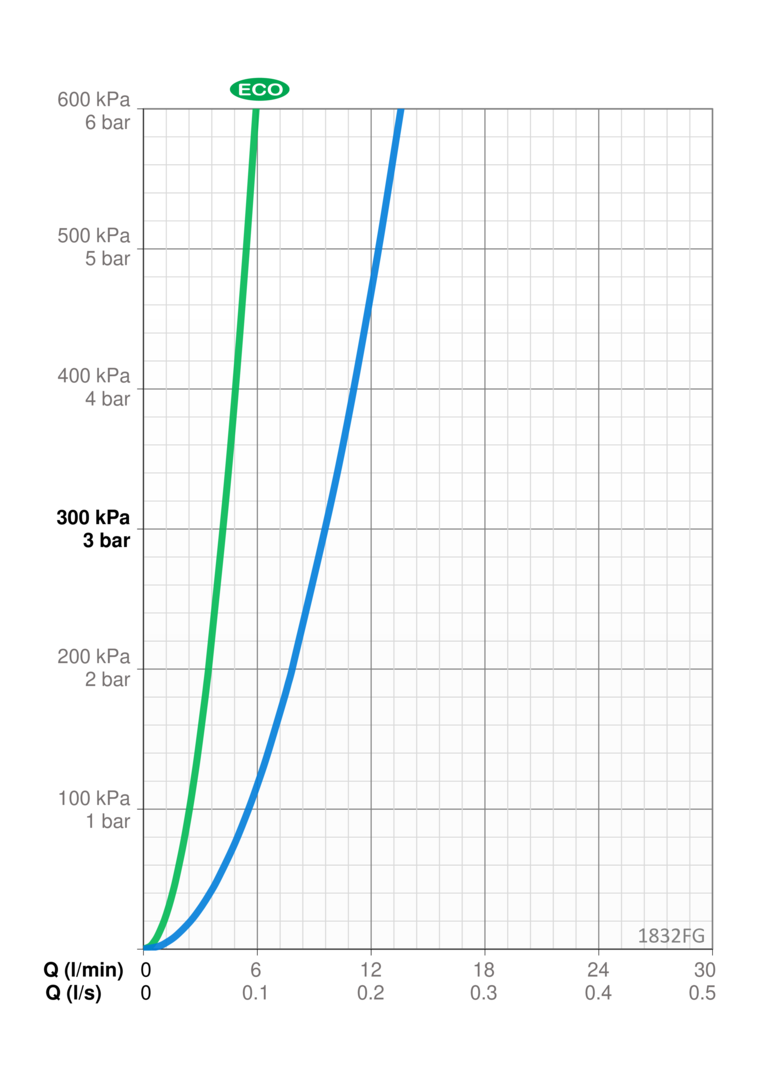

Flow attributes

• Eco-flow at 300 kPa
0.07 l/s
• Flow-rate at 300 kPa
0.16 l/s
• Pressure loss with flow (0.2 l/s)
470 kPa (70% qv = 230 kPa)

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
231 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 0229
• STF
EUFI29-20000935-TH1

Spare Parts
Oras Vega Comfort - Kitchen faucet

01 Lever (Chrome) / 1000935V

02 Limiter / 1004821V

03 Covering cap (Chrome) / 602589V

04 Tightening nut, M42x1.5, SW 38 / 158726

05 Cartridge / 158890

06 Hand shower (Chrome) / 126010

07 Hose, L=1500, G1/2-M15x1 / 600533V

08 Bottom seal, d 28 mm / 159431/10

09 Supporting plate, 100x60mm / 158825

10 Fixing screw, M8x1, L=130 / 1000780V

11 Fixing set / 602610V
