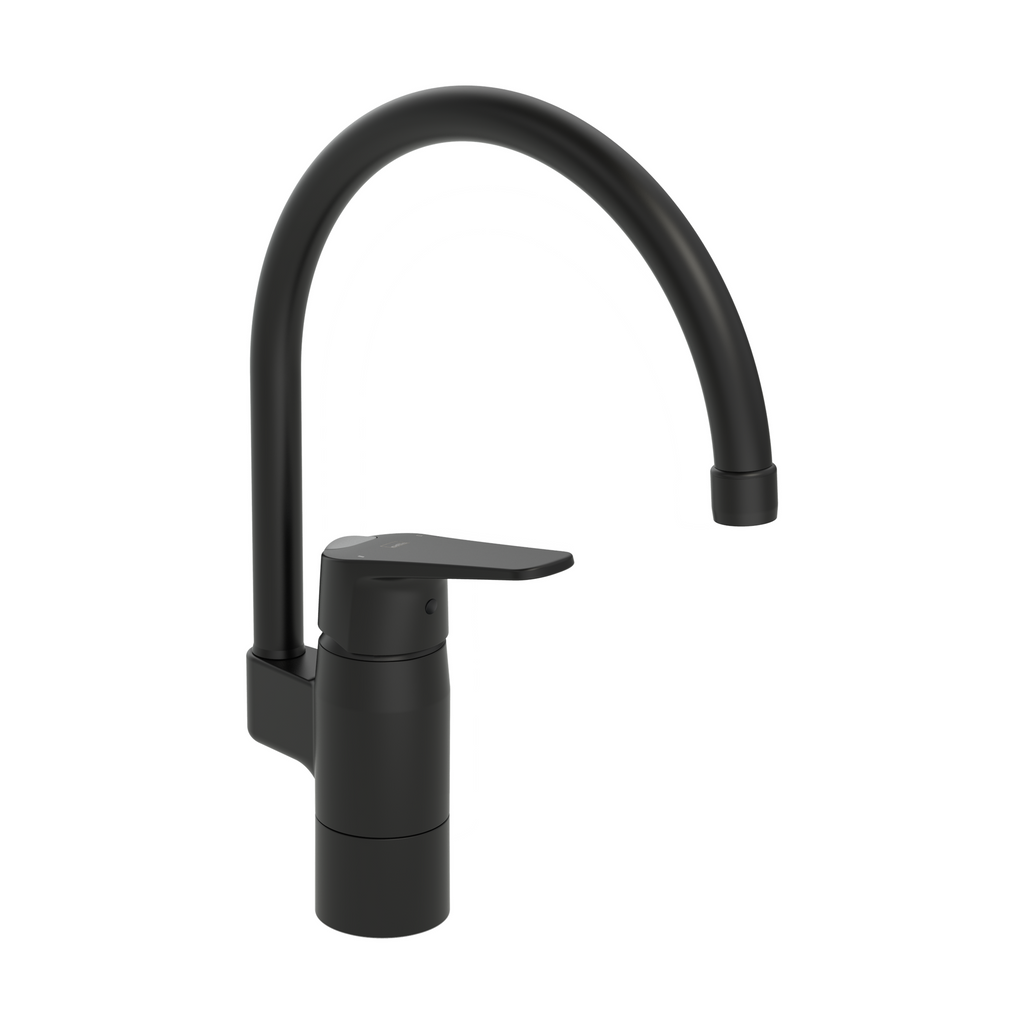

Oras Vega - Kitchen faucet 1838FG-33

Oras Vega - Kitchen faucet (1838FG-33)

€394,36
Sale price  €394,36 Regular price
Skip to product information
Oras Vega - Kitchen faucet 1838FG-33

Oras Vega - Kitchen faucet (1838FG-33)

€394,36
Sale price  €394,36 Regular price
Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols, Eco feature for water flow
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Swivel spout, Swivel range limiting option, Profile construction
• Color
Matt black
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (60° / 0°)

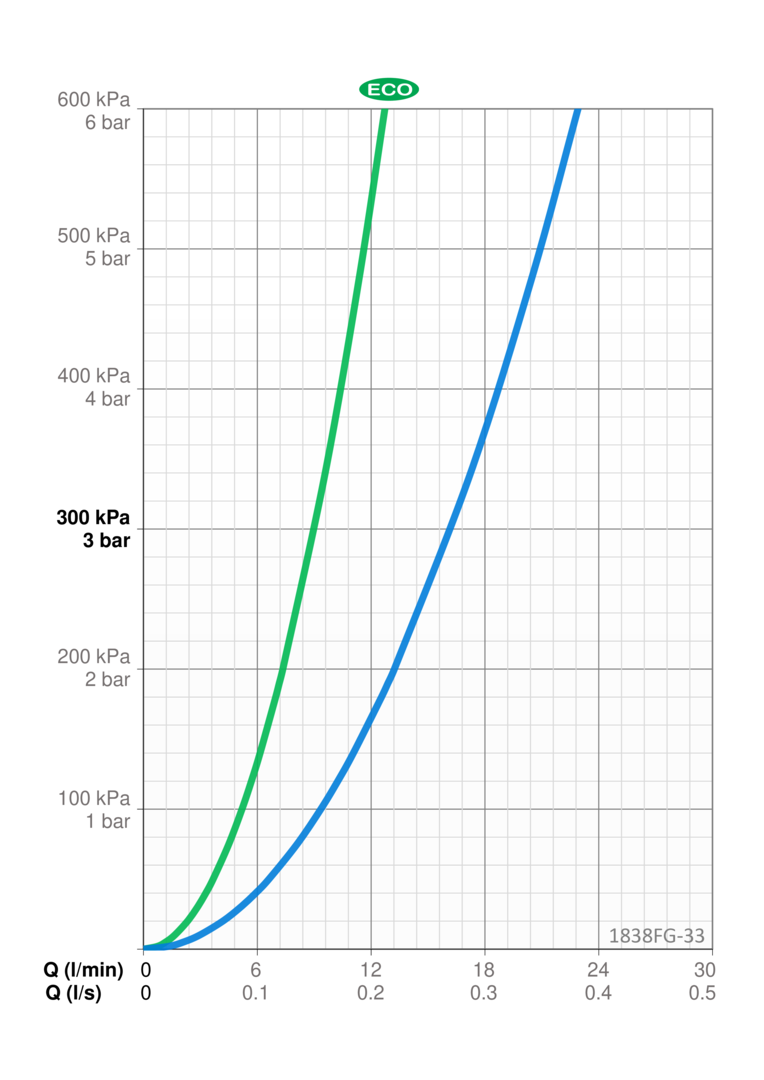

Flow attributes

• Eco-flow at 300 kPa
0.15 l/s
• Flow-rate at 300 kPa
0.27 l/s
• Pressure loss with flow (0.2 l/s)
170 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
178 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20000935-TH1

Spare Parts
Oras Vega - Kitchen faucet (1838FG-33)

01 Spout overturning stopper, 60°/0° / 159667V

02 Spout overturning stopper, 60°/0° / 159667/10

03 Spout overturning stopper, 120° / 159670/10

04 Sealing kit / 159499

05 Lever (Matt black) / 1000935V-33

06 Limiter / 1004821V

07 Tightening nut, M42x1.5, SW 38 / 158726

08 Cartridge / 158890

09 Bottom seal / 1002371V

10 Supporting plate, 100x60mm / 158825

11 Fixing screw, M8x1, L=130 / 1000780V

12 Fixing set / 602610V
