Oras Vega - Shower faucet (1875g)

Features

• Lever/Handle
Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control, Non-return valve(s)
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

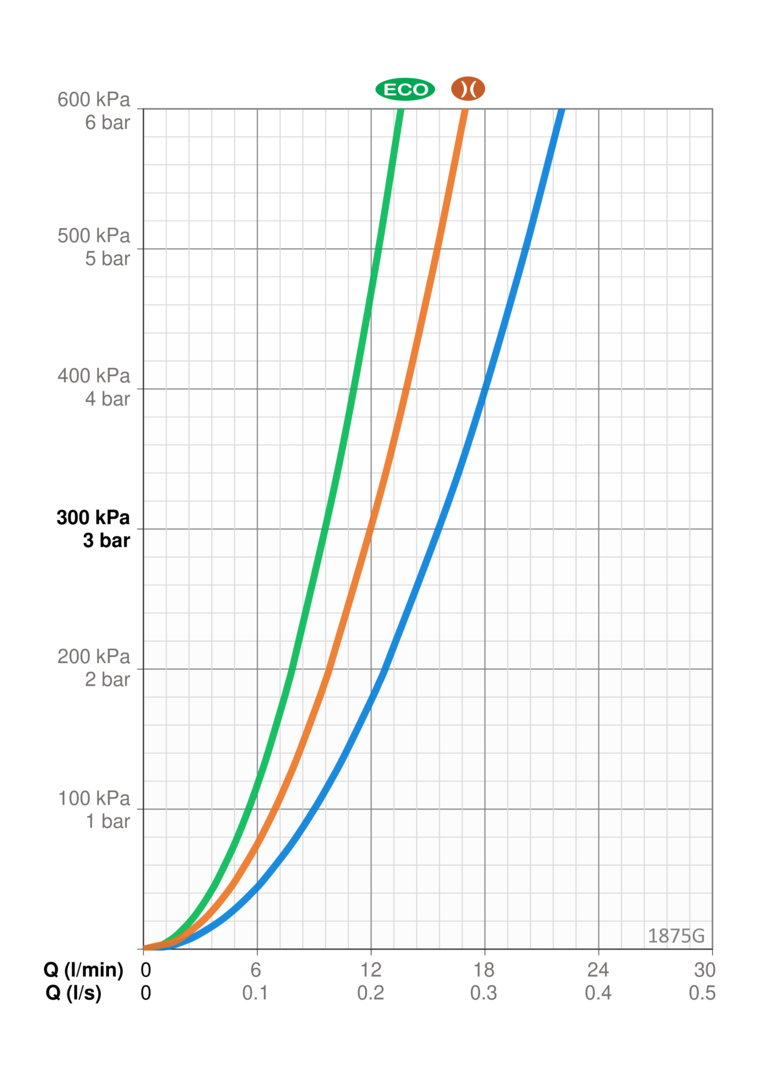

Flow attributes

• Eco-flow at 300 kPa
0.16 l/s
• Flow-rate at 300 kPa
0.26 l/s
• Flow-rate at 300 kPa (with flow reducers)
0.2 l/s
• Pressure loss 0.2 l/s (with flow reducers)
300 kPa
• Pressure loss with flow (0.2 l/s)
180 kPa

Technical properties

• Backflow prevention (EN1717)
EB
• Connection size
G3/4
• Hot water supply
max. +80°C

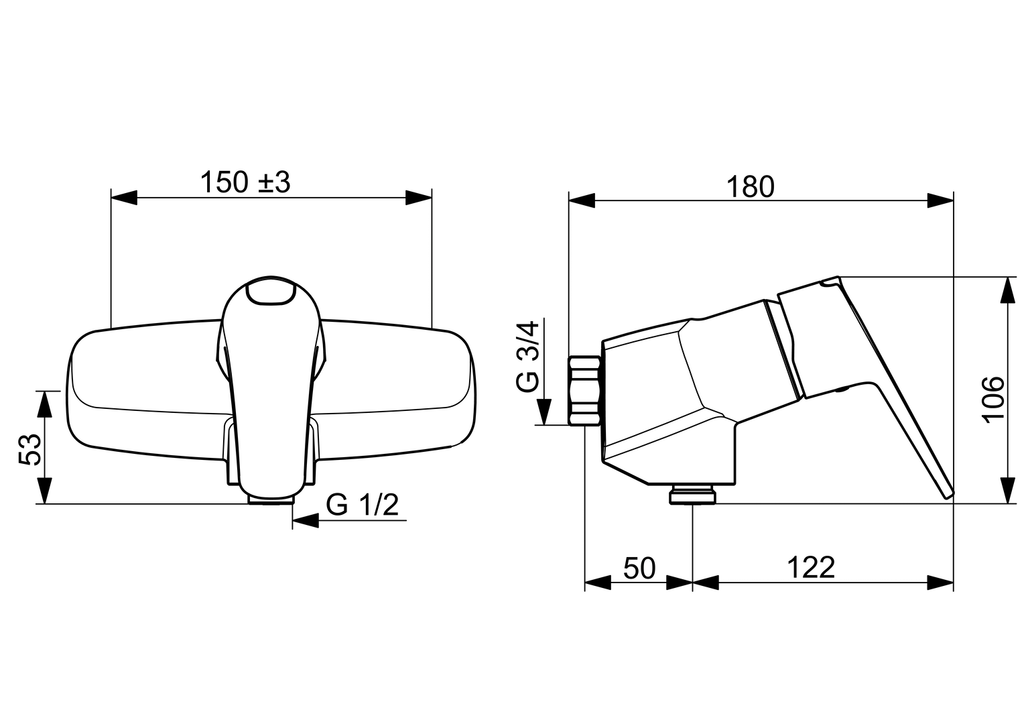

• Installation width
150 ± 3 mm
• Material
Brass
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20000935-TH2

Sustainability

• EPD module A1 (kg CO2 eq.)
6,17
• EPD module A1-A3 (kg CO2 eq.)
7,20
• EPD module A2 (kg CO2 eq.)
0,32
• EPD module A3 (kg CO2 eq.)
0,70
• EPD module A4 (kg CO2 eq.)
0,28
• EPD module B7 (kg CO2 eq.)
1651,20
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,01
• EPD module C4 (kg CO2 eq.)
1,06
• EPD module D (kg CO2 eq.)
-4,56
