Oras Vega - Utility room faucet 1828G

Oras Vega - Utility room faucet (1828G)

€288,54
Sale price  €288,54 Regular price
Skip to product information
Oras Vega - Utility room faucet 1828G

Oras Vega - Utility room faucet (1828G)

€288,54
Sale price  €288,54 Regular price

Utility room faucet with side brush. Swivel spout and aerator. Spout swing angle is factory preset at 120 ° (can be limited to 40 °-80 °). Lever is equipped with an eco-button for limiting flow-rate, which can be bypassed by pressing the button.

Technical Data

Features

• Aerator
Standard aerator
• Connection
Copper inlet pipes
• Hand shower
Side brush
• Lever/Handle
Single operating lever/handle, Hot/Cold symbols, Eco feature for water flow
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
2 hole
• Number of spray functions
1 spray function
• Shower parts
Shower holder, Shower hose (1500 mm)
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Swivel spout, Swivel range limiting option, Profile construction
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate
• Spout swivel range
120° (40° - 80°)

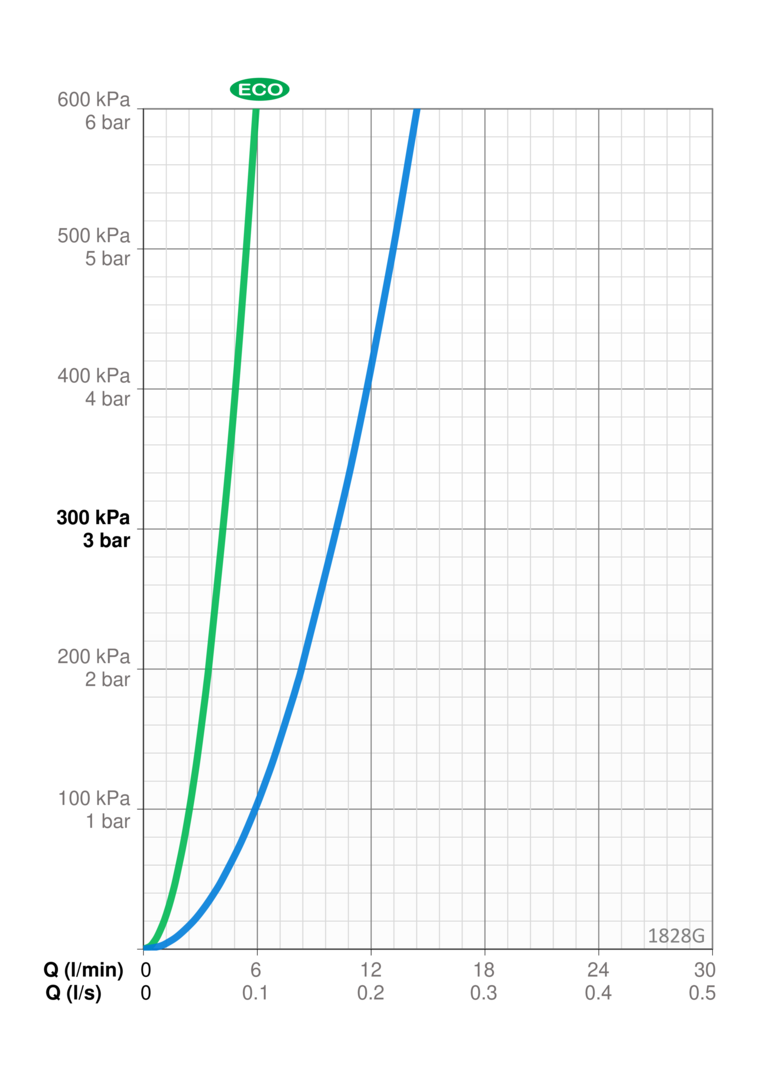

Flow attributes

• Eco-flow at 300 kPa
0.07 l/s
• Flow-rate at 300 kPa
0.17 l/s
• Pressure loss with flow (0.1 l/s)
105 kPa

Technical properties

• Backflow prevention (EN1717)
HC
• Connection size
Ø 10 mm
• Hot water supply
max. +80°C
• Material
Brass

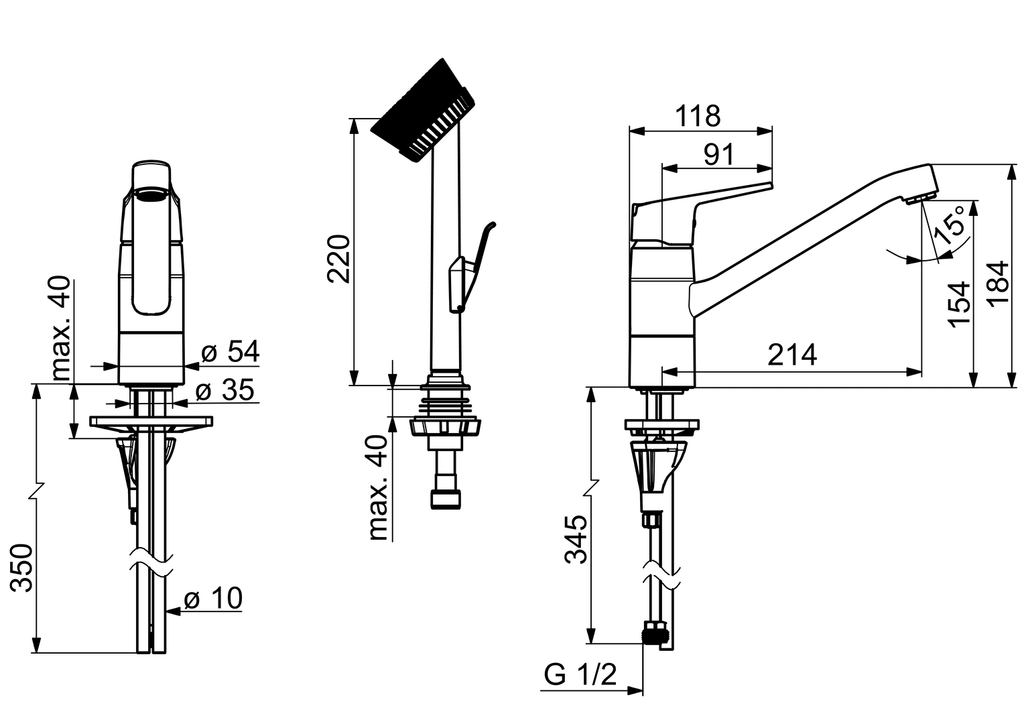

• Projection
214 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20000935-TH1

Spare Parts
Oras Vega - Utility room faucet (1828G)

01 Lever (Chrome) / 1000935V

02 Limiter / 1004821V

03 Covering cap (Chrome) / 602589V

04 Tightening nut, M42x1.5, SW 38 / 158726

05 Cartridge / 158890

06 Spout, L=210 (Chrome) / 1005585V

07 Spout overturning stopper, 120° / 1001406/10

08 Spout overturning stopper, 40°-80° / 1002207/10

09 Fixing screw, M8x1, L=130 / 1000780V

10 Fixing set / 602610V

11 Nipple / 159684

12 Aerator, M24x1 STD HC B (Chrome) / 232210

13 Bearing ring / 601097/10

14 X-sealing set / 158735

15 Bearing ring / 159423/10

16 Bottom seal / 1002371V

17 Supporting plate, 100x60mm / 158825
