Oras Vega - Washbasin faucet 1810FG-33

Oras Vega - Washbasin faucet (1810FG-33)

€239,63
Sale price  €239,63 Regular price
Skip to product information
Oras Vega - Washbasin faucet 1810FG-33

Oras Vega - Washbasin faucet (1810FG-33)

€239,63
Sale price  €239,63 Regular price
Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Extensions
Chain holder without chain
• Lever/Handle
Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Matt black
• Temperature
Limitation option for maximum temperature and flow-rate

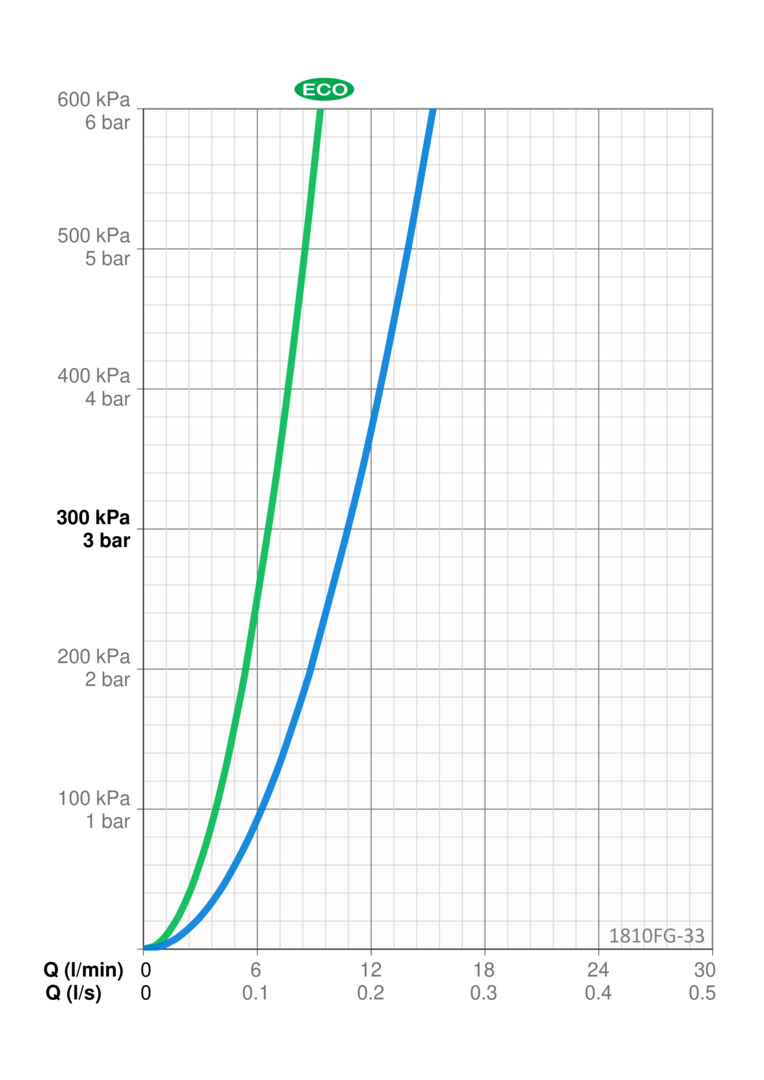

Flow attributes

• Eco-flow at 300 kPa
0.11 l/s
• Flow-rate at 300 kPa
0.18 l/s
• Pressure loss with flow (0.1 l/s)
110 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• DN-size (nominal dimension)
DN15
• Hot water supply
max. +70°C
• Material
Brass

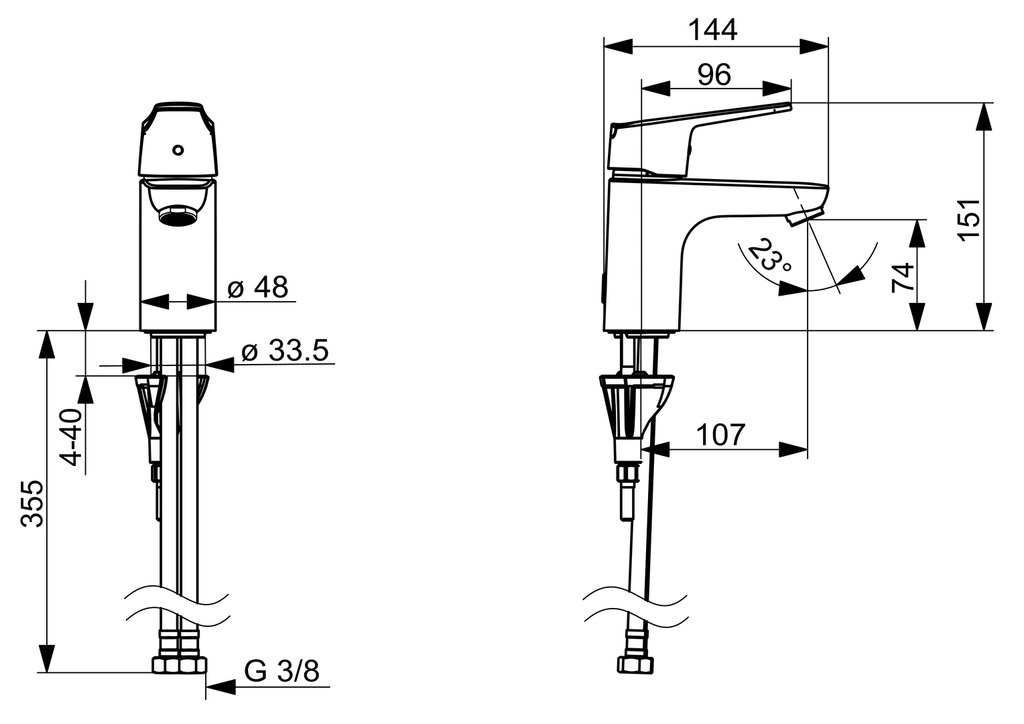

• Projection
107 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 3637
• STF
EUFI29-20000935-TH1

Sustainability

• EPD module A1 (kg CO2 eq.)
6,23
• EPD module A1-A3 (kg CO2 eq.)
7,13
• EPD module A2 (kg CO2 eq.)
0,30
• EPD module A3 (kg CO2 eq.)
0,59
• EPD module A4 (kg CO2 eq.)
0,20
• EPD module B7 (kg CO2 eq.)
2039,40
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,01
• EPD module C4 (kg CO2 eq.)
0,06
• EPD module D (kg CO2 eq.)
-5,07

Spare Parts
Oras Vega - Washbasin faucet (1810FG-33)

01 Lever (Matt black) / 1000935V-33

02 Limiter / 1004821V

03 Tightening nut, M42x1.5, SW 38 / 158726

04 Cartridge / 158890

05 Fixing screw, M8x1, L=130 / 1000780V

06 Fixing set / 602610V

07 Bottom seal / 1002371V

08 Nipple / 159684

09 Holder / 1002369V

10 Plug / 117929/10
