Oras Vega - Washbasin faucet 1810fgg

Oras Vega - Washbasin faucet (1810fgg)

€154,97
Sale price  €154,97 Regular price
Skip to product information
Oras Vega - Washbasin faucet 1810fgg

Oras Vega - Washbasin faucet (1810fgg)

€154,97
Sale price  €154,97 Regular price

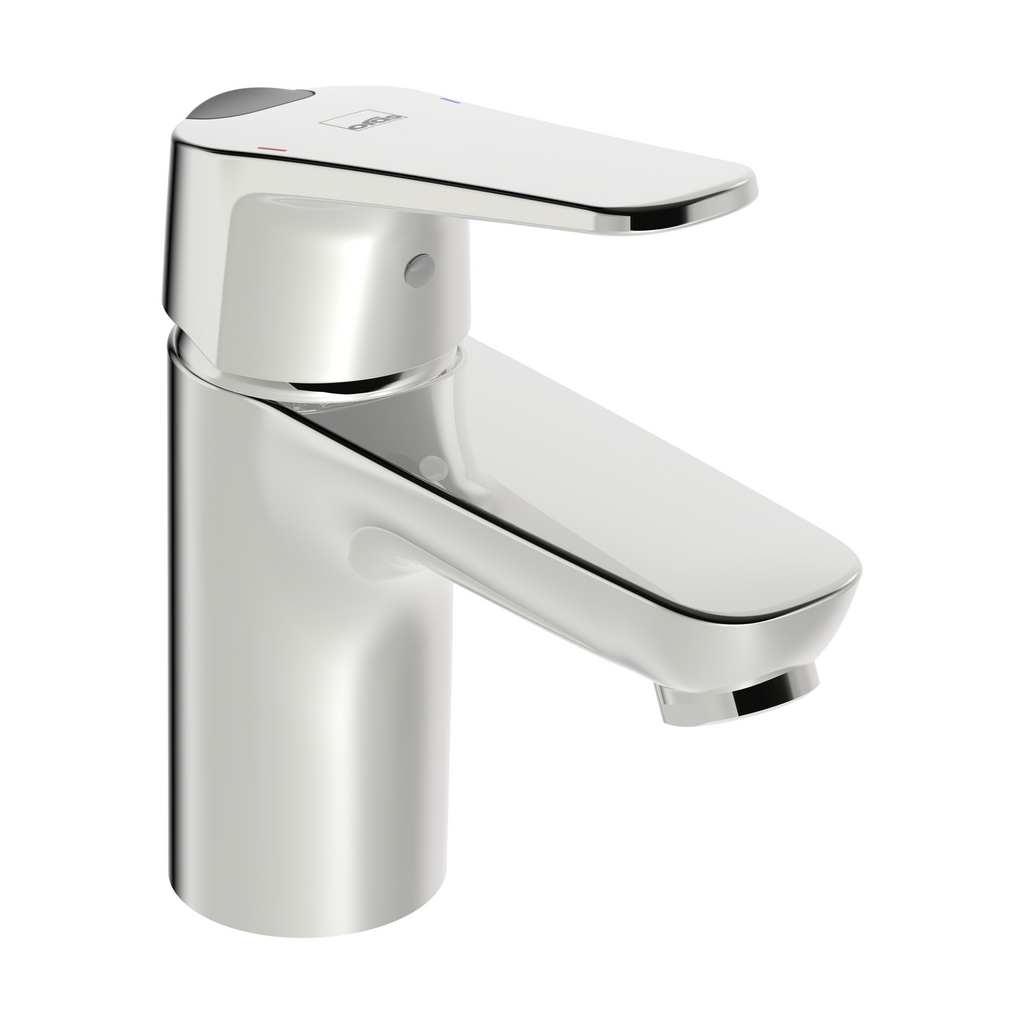

Washbasin faucet with fixed spout and aerator. Lever is equipped with an eco-button for limiting water temperature and flow-rate, which can be bypassed by pressing the button. Flow rate 0,09/ 0,12 l/s (eco/standard). With flexible pipes.

Technical Data

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Lever/Handle
Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

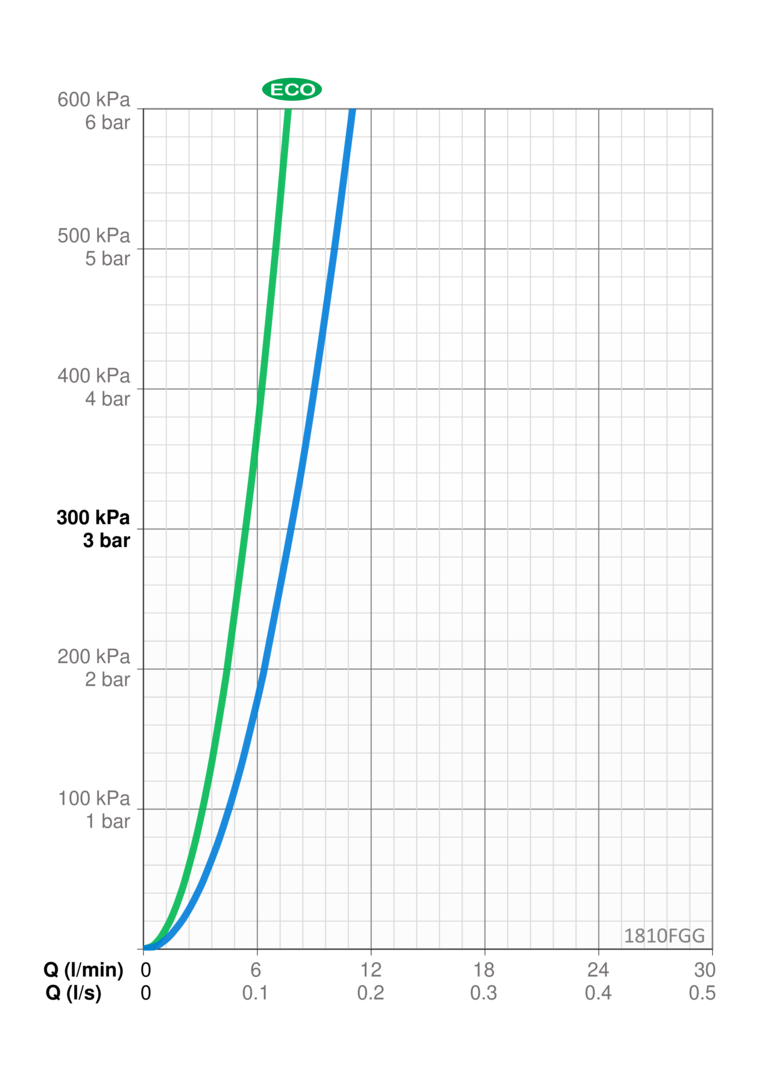

Flow attributes

• Eco-flow at 300 kPa
0.09 l/s
• Flow-rate at 300 kPa
0.13 l/s
• Pressure loss with flow (0.1 l/s)
190 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass

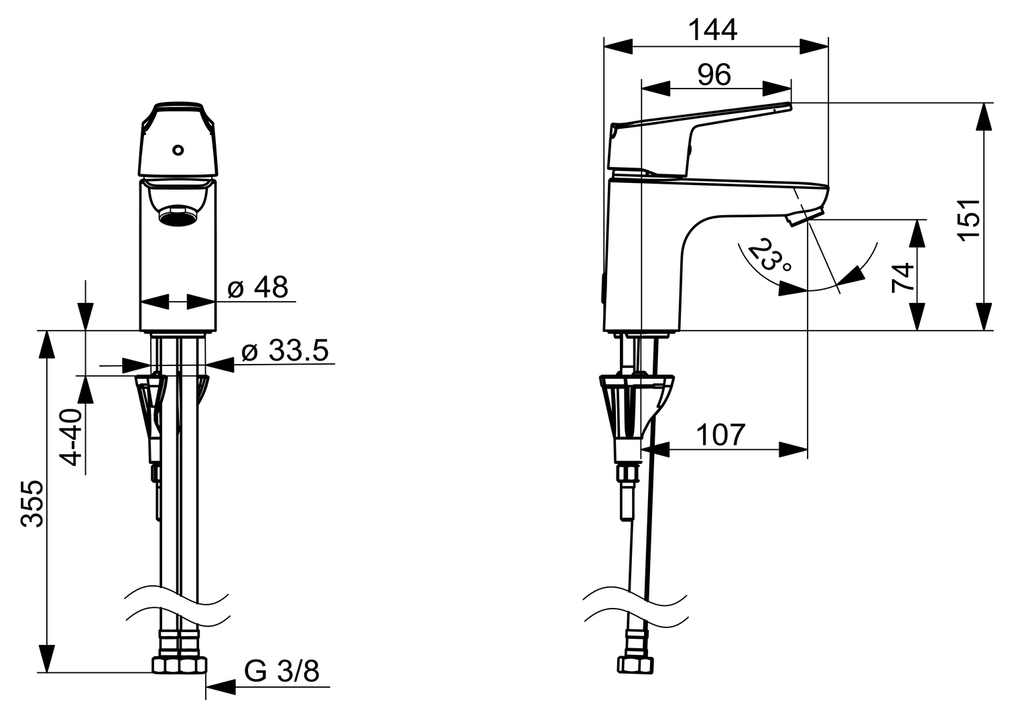

• Projection
107 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817
• Noise class
I (ISO 3822)

Approvals and Declarations

• Sintef
Sintef Nr. 3637
• SE Energy Mark
1603
• KIWA SE
1588

Sustainability

• EPD module A1 (kg CO2 eq.)
6,08
• EPD module A1-A3 (kg CO2 eq.)
6,95
• EPD module A2 (kg CO2 eq.)
0,29
• EPD module A3 (kg CO2 eq.)
0,58
• EPD module A4 (kg CO2 eq.)
0,19
• EPD module B7 (kg CO2 eq.)
1668,60
• EPD module C2 (kg CO2 eq.)
0,01
• EPD module C3 (kg CO2 eq.)
0,01
• EPD module C4 (kg CO2 eq.)
0,05
• EPD module D (kg CO2 eq.)
-4,95

Spare Parts
Oras Vega - Washbasin faucet (1810fgg)

01 Lever (Chrome) / 1000935V

02 Limiter / 1004821V

03 Covering cap (Chrome) / 1000664V

04 Tightening nut, M42x1.5, SW 38 / 158726

05 Cartridge / 158890

06 Fixing screw, M8x1, L=130 / 1000780V

07 Fixing set / 602610V

08 Aerator, M24x1 STD HC A (Chrome) / 232211

09 Bottom seal / 1002371V

10 Nipple / 159684

11 Holder / 1002369V

12 Plug / 117929/10
