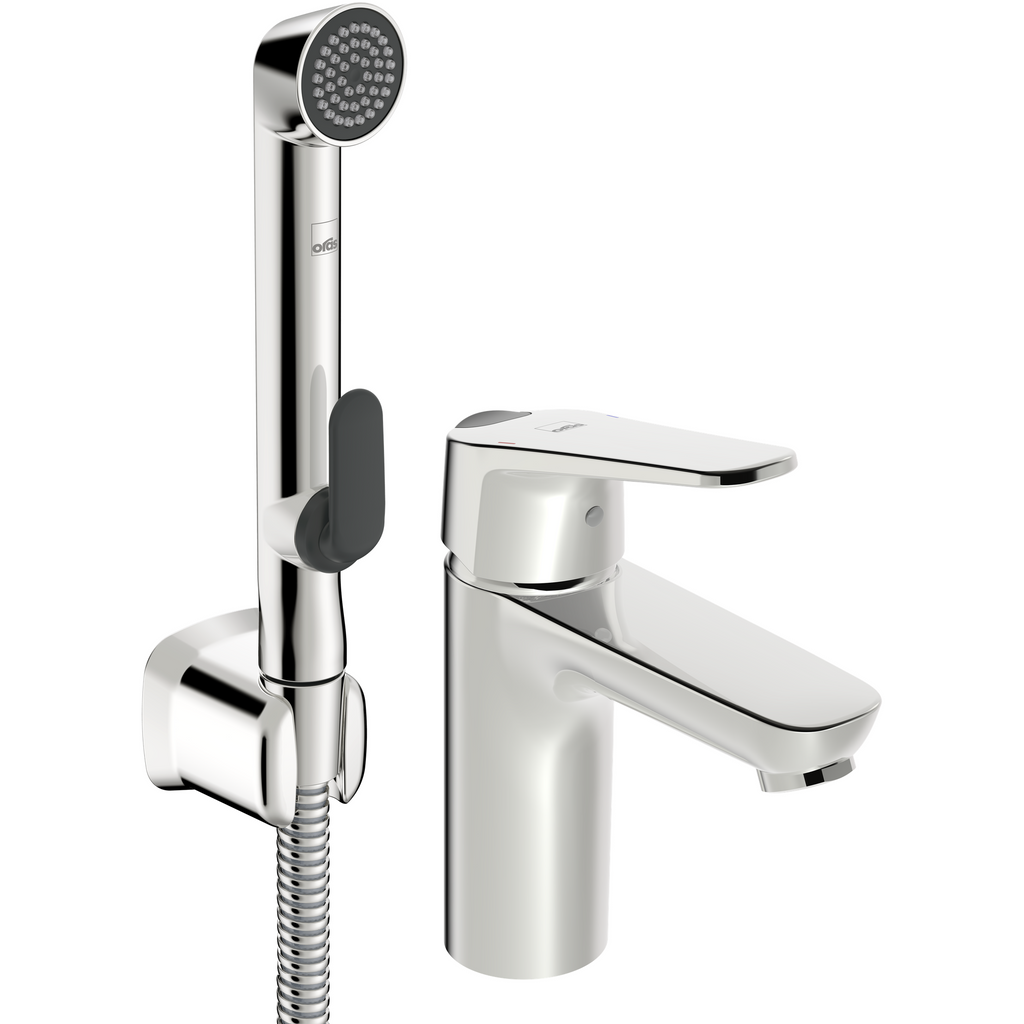

Oras Vega XL - Washbasin faucet (1801FG)

Features

• Aerator
Standard aerator
• Connection
Flexible inlet pipes
• Extensions
Chain holder without chain
• Hand shower
Bidetta hand shower
• Lever/Handle
Eco feature for water flow, Hot/Cold symbols, Safety feature for water temperature, Single operating lever/handle
• Mechanical parts
ø 40 mm ceramic cartridge for flow and temperature control
• Mounting holes
1 hole
• Number of spray functions
1 spray function
• Shower parts
Hand shower, Shower holder, Shower hose (1750 mm)
• Advanced features
3S-installation system for safe and simple mounting
• Spout
Fixed spout
• Color
Chrome
• Temperature
Limitation option for maximum temperature and flow-rate

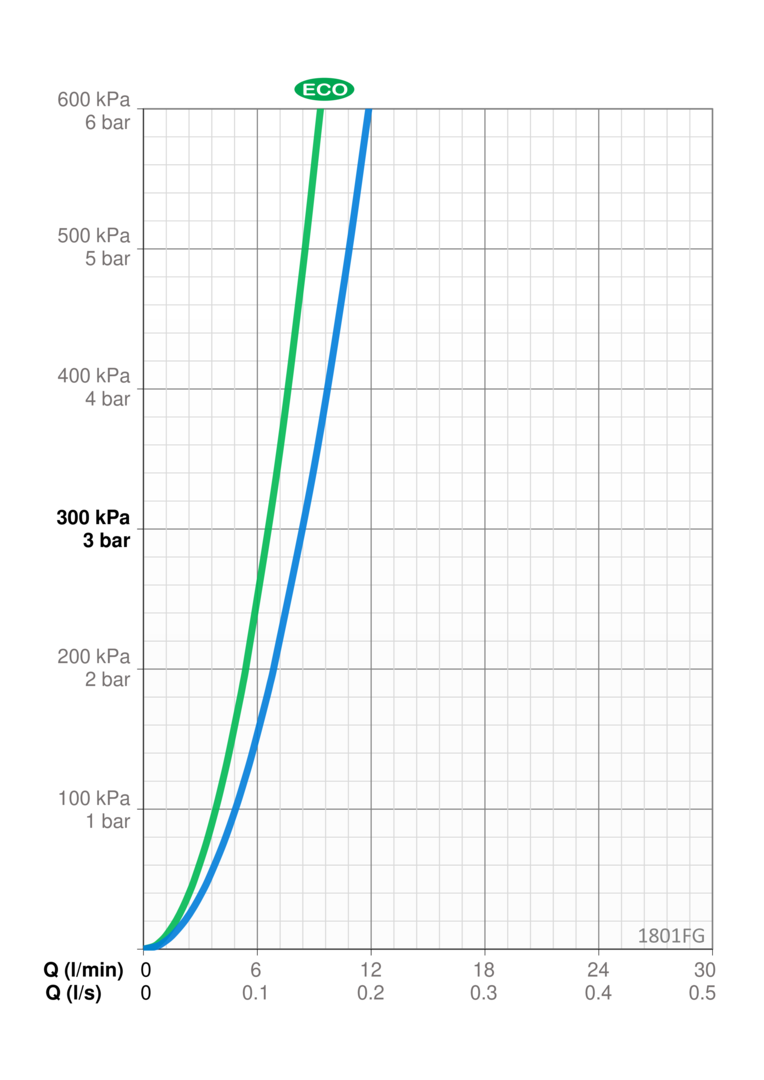

Flow attributes

• Eco-flow at 300 kPa
0.11 l/s
• Flow-rate at 300 kPa
0.14 l/s
• Pressure loss with flow (0.1 l/s)
180 kPa

Technical properties

• Backflow prevention (EN1717)
AA
• Connection size
G3/8
• Hot water supply
max. +70°C
• Material
Brass
• Projection
115 mm
• Working pressure
50 - 1000 kPa

Regulations

• EN standard
EN 817, EN 1113
• Noise class
I (ISO 3822)

Approvals and Declarations

• STF
EUFI29-20000935-TH1
